Another minor development project, this one is an offshoot of LED strips that someone else made, but mounting brackets I made to fit them to a TAZ or an AO-10x frame (or any other mendelmax type frame for that matter) Project is here: [http://www.thingiverse.com/thing:229539](http://www.thingiverse.com/thing:229539) I’ll also have some end caps here eventually to hopefully hide the wires a bit better. ![IMG_1321.JPG](https://us1.discourse-cdn.com/flex020/uploads/lulzbot/original/1X/ac454f9a59470b79c6995c015b2e6f410c4a4376.jpeg) ![IMG_1323.JPG](https://us1.discourse-cdn.com/flex020/uploads/lulzbot/original/1X/66b86a130e1654a0252dfb8b4744519b5cf9a284.jpeg) ![IMG_1325.JPG](https://us1.discourse-cdn.com/flex020/uploads/lulzbot/original/1X/f203a652a61b48af8aa63277577d53cc4f628d87.jpeg) If anyone wants design files or dwg’s for these, let me know. [lightclip\_join.stl](https://forum.lulzbot.com/uploads/short-url/gi0fhDV5HfAuECplmbiSjBzj8eS.stl) (11.4 KB) [lightclip.stl](https://forum.lulzbot.com/uploads/short-url/uSmOqFRkv8FJ7etqdn5XJKnhCmb.stl) (60.6 KB) [LedStripMountBar.stl](https://forum.lulzbot.com/uploads/short-url/vl0anctMrpaqaYvAvtLWbGCJAAn.stl) (47.2 KB) ---
**Author:** ![Theycallmejohn](https://sea2.discourse-cdn.com/flex020/user_avatar/forum.lulzbot.com/theycallmejohn/32/17_2.png) [@Theycallmejohn](https://forum.lulzbot.com/u/Theycallmejohn)\ **Post date:** [January 19, 2014, 7:48am UTC](https://forum.lulzbot.com/t/gantry-lighting-for-a-taz-or-an-ao-10x-printer/435/2 "2014-01-19T07:48:00Z")
I like it!!! Another successful Piercet Project. Still have to find the right four piece connectors to wire mine up. ---
**Author:** ![piercet](https://sea2.discourse-cdn.com/flex020/user_avatar/forum.lulzbot.com/piercet/32/12_2.png) [@piercet](https://forum.lulzbot.com/u/piercet)\ **Post date:** [January 19, 2014, 8:01am UTC](https://forum.lulzbot.com/t/gantry-lighting-for-a-taz-or-an-ao-10x-printer/435/3 "2014-01-19T08:01:02Z")
Glad you like it! There’s going to be another ring light on the actual X axis carriage itself too, but that’s not far enough along yet to post. What kind of connectors are you looking for? DIgikey or ebay should have pretty much any of them. the problem is figuring out what they are actually called heh. ---
**Author:** ![Theycallmejohn](https://sea2.discourse-cdn.com/flex020/user_avatar/forum.lulzbot.com/theycallmejohn/32/17_2.png) [@Theycallmejohn](https://forum.lulzbot.com/u/Theycallmejohn)\ **Post date:** [January 19, 2014, 7:38pm UTC](https://forum.lulzbot.com/t/gantry-lighting-for-a-taz-or-an-ao-10x-printer/435/4 "2014-01-19T19:38:49Z")
I am not sure which connectors exactly. I am looking for a something a little smaller then the connector or Budaschnozzle 1.3. The problem is I don’t know what gauge the RGB wire I have is and it wasn’t listed by the supplier. I am sure once I search around a bit I can find a method online. ---
**Author:** ![piercet](https://sea2.discourse-cdn.com/flex020/user_avatar/forum.lulzbot.com/piercet/32/12_2.png) [@piercet](https://forum.lulzbot.com/u/piercet)\ **Post date:** [January 20, 2014, 8:03pm UTC](https://forum.lulzbot.com/t/gantry-lighting-for-a-taz-or-an-ao-10x-printer/435/5 "2014-01-20T20:03:52Z")
> [@faris](#): > > Wow, that is a big facility. Nice! You must have about 1/5th of the worlds supply of 3d printers in there heh. Ok, I don’t get it. Thats what I wrote in the other thread. why is it posted in this one? ---
**Author:** ![Theycallmejohn](https://sea2.discourse-cdn.com/flex020/user_avatar/forum.lulzbot.com/theycallmejohn/32/17_2.png) [@Theycallmejohn](https://forum.lulzbot.com/u/Theycallmejohn)\ **Post date:** [January 20, 2014, 8:11pm UTC](https://forum.lulzbot.com/t/gantry-lighting-for-a-taz-or-an-ao-10x-printer/435/6 "2014-01-20T20:11:11Z")
Maybe you have a stalker? Lol ---
**Author:** ![Orias](https://sea2.discourse-cdn.com/flex020/user_avatar/forum.lulzbot.com/orias/32/3_2.png) [@Orias](https://forum.lulzbot.com/u/Orias)\ **Post date:** [January 20, 2014, 11:40pm UTC](https://forum.lulzbot.com/t/gantry-lighting-for-a-taz-or-an-ao-10x-printer/435/7 "2014-01-20T23:40:14Z")
> [@piercet](#): > > > [@faris](#): > > > > Wow, that is a big facility. Nice! You must have about 1/5th of the worlds supply of 3d printers in there heh. > > Ok, I don’t get it. Thats what I wrote in the other thread. why is it posted in this one? Not only are your designs being duplicated and used by others, your comments are as well! Spammy post deleted. Thank you for the report! ![](https://us1.discourse-cdn.com/flex020/uploads/lulzbot/original/2X/c/c4df404aa0010b1f1bf388f181f07996327690b8.gif) ---
**Author:** ![piercet](https://sea2.discourse-cdn.com/flex020/user_avatar/forum.lulzbot.com/piercet/32/12_2.png) [@piercet](https://forum.lulzbot.com/u/piercet)\ **Post date:** [January 21, 2014, 6:54am UTC](https://forum.lulzbot.com/t/gantry-lighting-for-a-taz-or-an-ao-10x-printer/435/8 "2014-01-21T06:54:01Z")

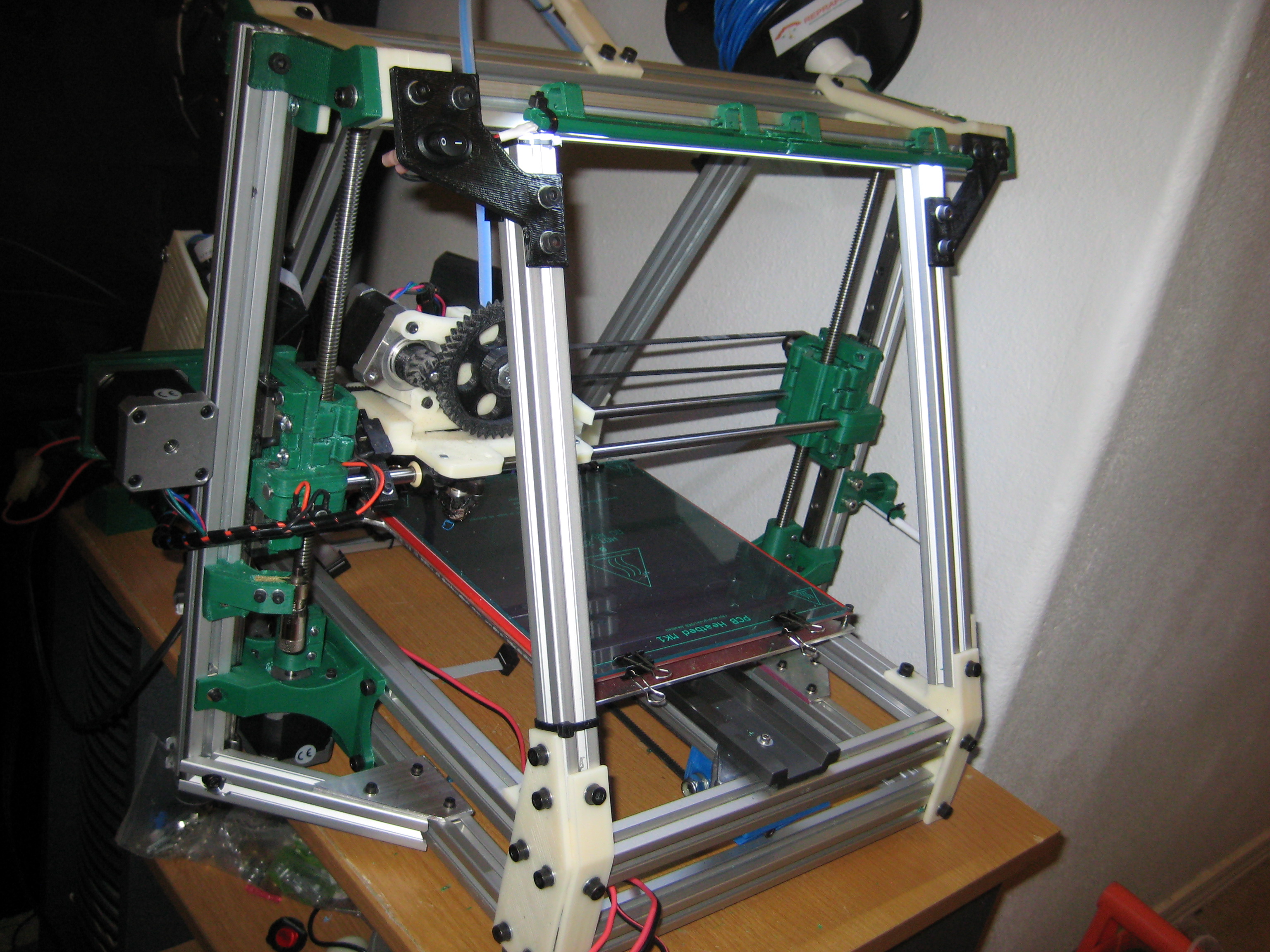

Thanks for cleaning the spammer! Here’s one side of the lights lit up. I’m waiting on the 2 pin disconnects before I add in the other side light, that and I apparently suck at soldering wires to thin plastic light strips ![IMG_1336.JPG](https://us1.discourse-cdn.com/flex020/uploads/lulzbot/original/1X/c713e48d581c821d0d47251052aa2b658dbe9d7c.jpeg) edit: ignore the wire mess, that’s just temporary wiring. THe final product will be cleaner. ---
**Author:** ![piercet](https://sea2.discourse-cdn.com/flex020/user_avatar/forum.lulzbot.com/piercet/32/12_2.png) [@piercet](https://forum.lulzbot.com/u/piercet)\ **Post date:** [January 22, 2014, 5:02am UTC](https://forum.lulzbot.com/t/gantry-lighting-for-a-taz-or-an-ao-10x-printer/435/9 "2014-01-22T05:02:33Z")

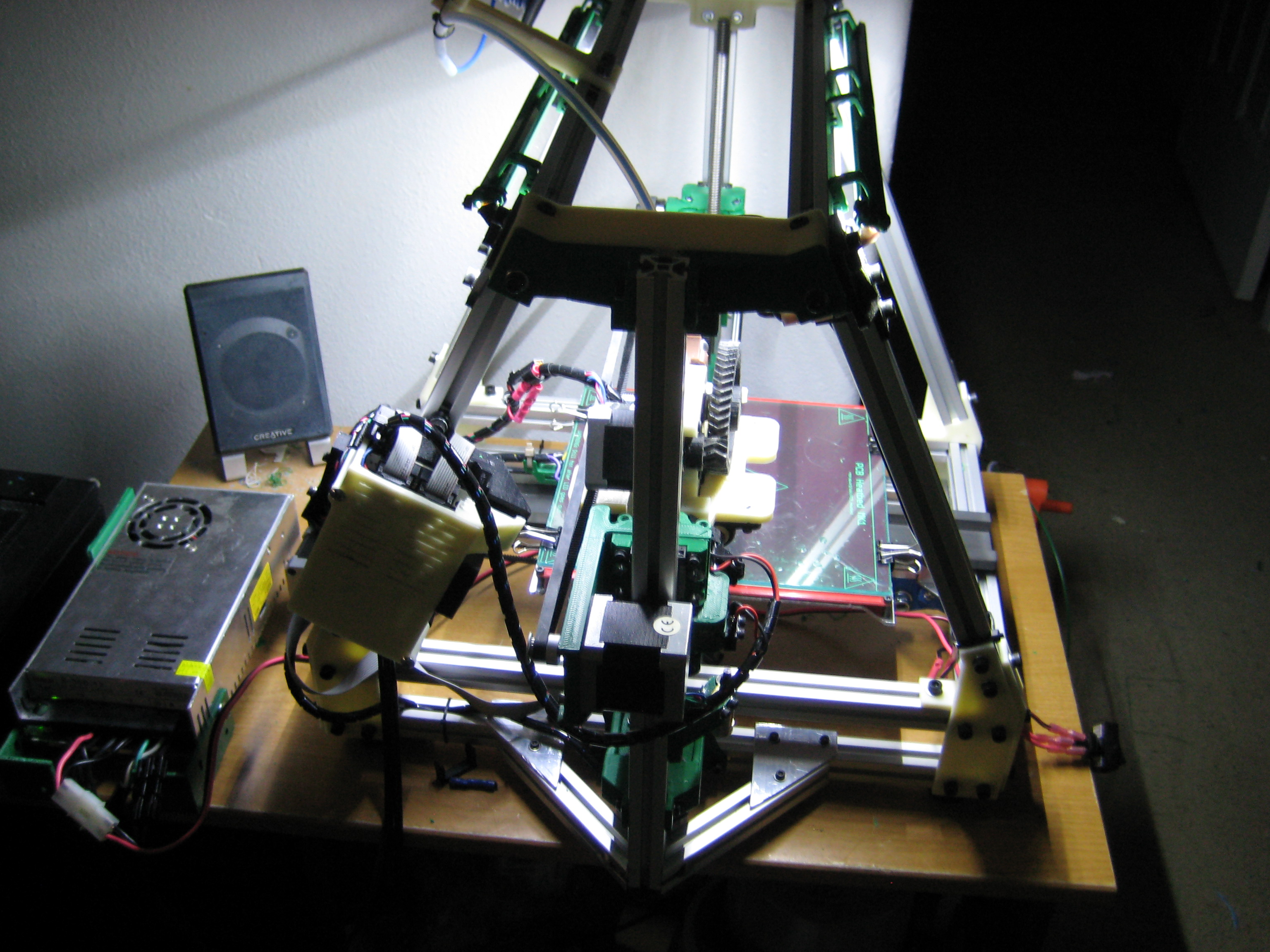

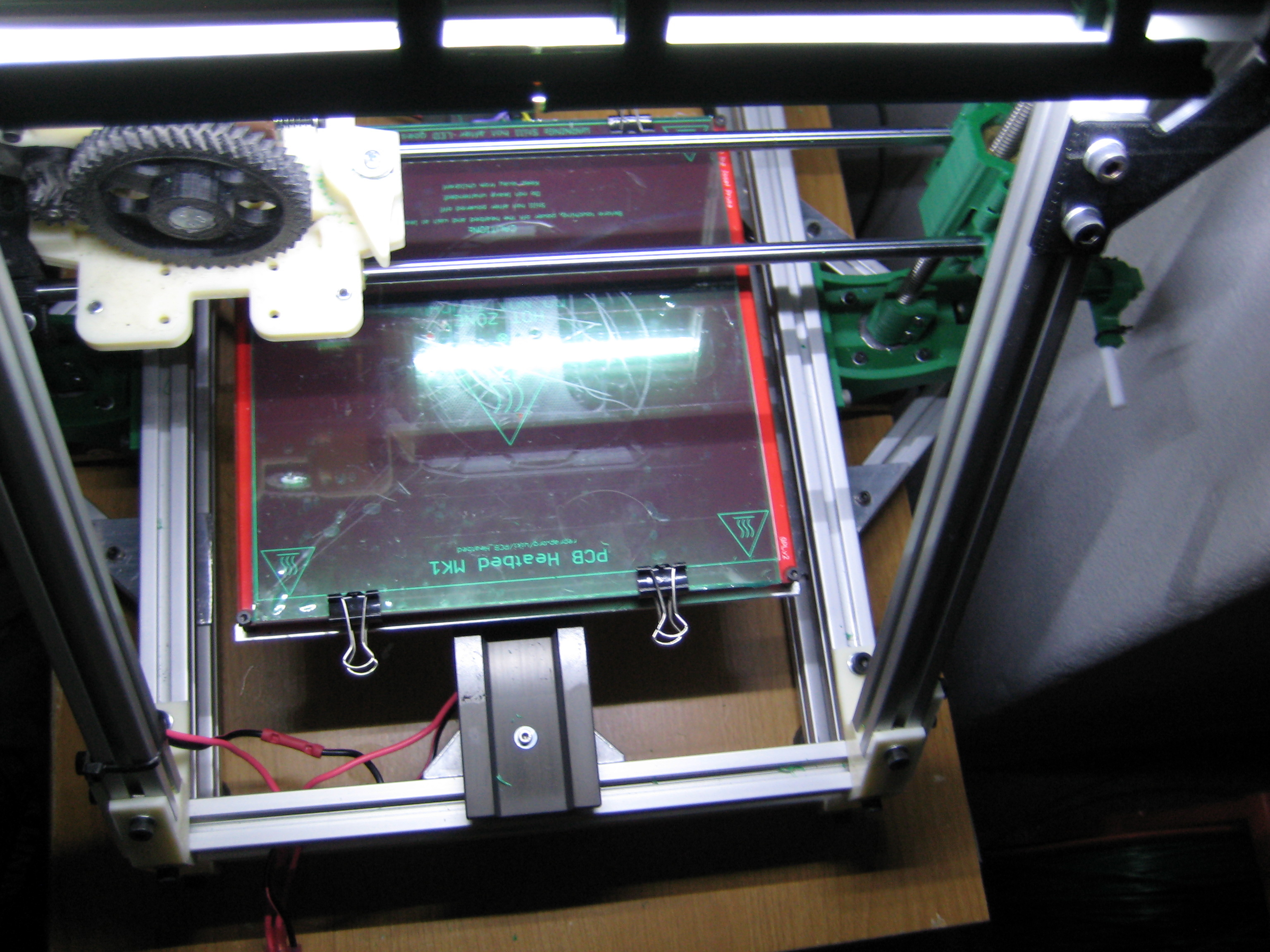

Second side is on, and everything is quite bright. I don’t think i’ll need to worry about running that ring light around the extruder nozzle at all. I still plan on making some end caps to hide the wiring better, but aside from those this one is done. Yay! ![IMG_1338.JPG](https://us1.discourse-cdn.com/flex020/uploads/lulzbot/original/1X/7256e6eb666d954658d792e1ebdf4b3ed7981884.jpeg) ![IMG_1341.JPG](https://us1.discourse-cdn.com/flex020/uploads/lulzbot/original/1X/1da9796d0da18dbb285cc7909ce539530f5985d3.jpeg) ---
**Author:** ![piercet](https://sea2.discourse-cdn.com/flex020/user_avatar/forum.lulzbot.com/piercet/32/12_2.png) [@piercet](https://forum.lulzbot.com/u/piercet)\ **Post date:** [January 31, 2014, 5:06am UTC](https://forum.lulzbot.com/t/gantry-lighting-for-a-taz-or-an-ao-10x-printer/435/10 "2014-01-31T05:06:33Z")

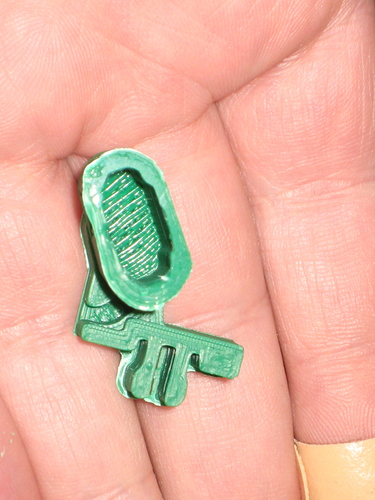

Here are the promised endcap wire hideing pieces. > **[Endcaps and wire guides for LED light bars by piercet](https://www.thingiverse.com/thing:238238)** > > This is a set of right and left endcaps for the LED light strip bars, They go with the AO-10x / Mendelmax bracket set that I designed, but may also fit Flurin's brackets potentially. > Uploaded a 5mm wider mount and 8mm longer endcap module as well,... ![IMG_1350.JPG](https://us1.discourse-cdn.com/flex020/uploads/lulzbot/original/1X/fad019620d352e5649a97433444650a110f33892.jpeg) ![IMG_1351.JPG](https://us1.discourse-cdn.com/flex020/uploads/lulzbot/original/1X/0e040876554a7314b06a6e7e645988c2b148c6f5.jpeg) ![IMG_1352.JPG](https://us1.discourse-cdn.com/flex020/uploads/lulzbot/original/1X/a8c8e0a2ab808cd251f985ebe9737d4b9e76eb83.jpeg) ![IMG_1359.JPG](https://us1.discourse-cdn.com/flex020/uploads/lulzbot/original/1X/0bdbc949f121cae9e1138283f208fe01d68fbe00.jpeg) [Endcap\_B.stl](https://forum.lulzbot.com/uploads/short-url/sVwPuIxsufT2eyr0LDrO5wqkLiM.stl) (93.7 KB) [endcap R\_L.stl](https://forum.lulzbot.com/uploads/short-url/1sjYXhNRB9GnEpjrhPBkhsnsoLc.stl) (98.9 KB)
