f3nix
May 10, 2015, 11:55pm
1
Hello,
in this thread I’m going to add parts migrated to FreeCAD.
I hope these files can be useful to some people
FreeCAD version 0.16.5154. OCE 6.9.0.
Printable parts 1:
1. Y corner right V1.2
2. Y corner left V1.2
3. Y motor mount V2.4
4. Spool arm V2.0

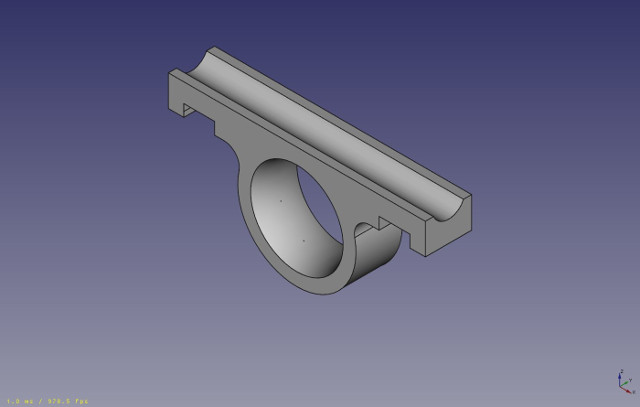

5. Y bearing mount V2.6
6. Feed tube spinner V1.0
Cheers,
Mateusz
feed_tube_spinner-V1.0_fc0.1.FCStd (79.6 KB)
y_bearing_mount-V2.6b_fc0.1.FCStd (261 KB)
spool_arm-V2.0_fc0.2.FCStd (62.9 KB)
Y_motor_mount-V2.4_fc0.2.FCStd (331 KB)
Y_corner_right-V1.2_fc0.3.FCStd (219 KB)
Y_corner_left-V1.2_fc0.3.FCStd (252 KB)
f3nix
May 17, 2015, 4:32am
2
Printable parts 2:
7. Fan mount 3
8. Double bearing holder V2.0
9. X carriage V2.0 (ported from STL)
10. X carriage guide V1.0 (ported from STL)
x_carriage_guide_V1.0_fc0.1.fcstd (51.9 KB)
x_carriage_V2.0_fc0.1.fcstd (750 KB)
double_bearing_holder-2.0_fc0.1.fcstd (199 KB)
fan_mount_3_ss_fc0.5.FCStd (1.33 MB)
f3nix
May 17, 2015, 4:32am
3
Semi-printable parts:
1. Frame connector V2.0
frame_connector_V2.0_fc0.2.FCStd (24.2 KB)
f3nix
May 17, 2015, 4:37am
4
Non-printable parts:
1. 300mm bed mount plate
2. Y axis end idler
3. Y axis end motor
4. X end plate
5. LCD cover back
6. LCD cover front
LCD_cover_front_revA_fc0.1.fcstd (31 KB)
LCD_cover_back_revA_fc0.1.fcstd (82 KB)
X_end_plate_revA_fc0.1.FCStd (113 KB)
300mm_bed_mount_plate_revB_fc0.2.FCStd (109 KB)
Y_axis_end_motor_revC_fc0.1.FCStd (30.8 KB)
Y_axis_end_idler_revC_fc0.1.FCStd (32.4 KB)
f3nix
May 17, 2015, 5:10am
5
Non-printable parts 2:
7. Electronics enclosure
8. Electronics cover
enclosure_sheet_metal_revC_fc0.2.fcstd (686 KB)
electronics_cover_revA_fc0.1.fcstd (189 KB)
f3nix
May 19, 2015, 9:16pm
6
Added feed tube spinner, 300m bed mount plate and frame connector.
f3nix
May 30, 2015, 2:51pm
7
Added updated frame connector and bed mount plate - V0.2
f3nix
June 28, 2015, 9:36am
9
Added Y axis end idler, Y axis end motor and X end plate.
f3nix
August 26, 2015, 10:32pm
10
Added double bearing holder, LCD cover back, LCD cover front, electronics enclosure and electronics cover.
f3nix
September 2, 2015, 4:44am
11
Added X carriage and X carriage guide. Parts ported from STL.
Maybe I am old fashioned but doesn’t posting these files make it easy for the Chinese or folks in India to start making cheap copies to sell, putting yet another good US company under the knife so to speak?
f3nix
September 7, 2015, 7:07am
14
Hi,
these files are available at download.lulzbot.com and devel.lulzbot.com . But they are in pdf, stl and solidworks formats. They were uploaded by the LulzBot team. So making a clone is not a problem. Even without these files cloning wouldn’t be a problem I guess.
Not every (most?) hobbyist can afford buying such an expensive program as solidworks. So if you want to mod your printer it is easier to use an open source program to do so. That’s why I have ported these files to FreeCAD. To give something back to the great community.
Cheers,
Mateusz
P.S. The TAZ design is open source as well.
starkor
February 25, 2016, 5:57pm
15
Nevermind, someone taught me how to import and convert an STL to a shape. Very cool!
Regards,
Matt
Can you please add the rest or at least extruder_mount_hex.stl? These are perfect for the conversion I am working on.
Thanks!!!
Regards,
Matt
f3nix
February 26, 2016, 5:35am
16
Hi,
here is previous (?) version in FreeCAD:
Extruder_Mount v1.2.FCStd
With a little work it could be converted to extruder_mount_hex.
Cheers,
Mateusz
